Romsey Abbey,  Hampshire
12-13th century

Click on photos to enlarge.
Notes in italics from Hampshire and the Isle of Wight by Nikolaus Pevsner and David Lloyd (1967)
Yale University Press, New Haven and London.



Dscn0040-transf-u1-h405-u0.5-q50.jpg (69709 bytes) Dscn0030-transf-clncntr-u2t3-h560-u0.5-q50.jpg (78610 bytes) Dscn0028-transf-clncntr-u2-540-u0.5t3-q50.jpg (75560 bytes)

Dscn0067-transf-clncntr-varyr-u2-h405-u0.5-q60.jpg (63439 bytes) Dscn0077-transf-varlt-varyr-u2-h405-u0.5-q50.jpg (78241 bytes) Dscn9988-tranfs-varyr-u2t3-h405-u0.5-crop-q50.jpg (65830 bytes)

The first foundation of a nunnery at Romsey dates from 907. It was by Edward the Elder (son of Alfred the Great) for his daughter Elfleda. A second foundation became necessary in 967 ... A general rebuilding began about 1120 and continued to about 1230 ... At the Dissolution the church was bought by the town, and that has saved it from demolition. All the conventual buildings on the other hand were pulled down (except perhaps for one wall of the refectory inside a house S of the church; VCH).



Dscn0017-u2t3-540-u0.5-q40.jpg (68939 bytes) Dscn9991-clncntr-u2t3-540-u0.5-q40.jpg (68245 bytes) Dscn0005-u2-540-u0.5t3-q50.jpg (76388 bytes)

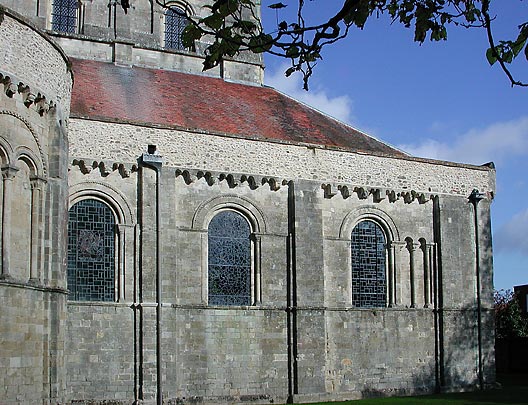

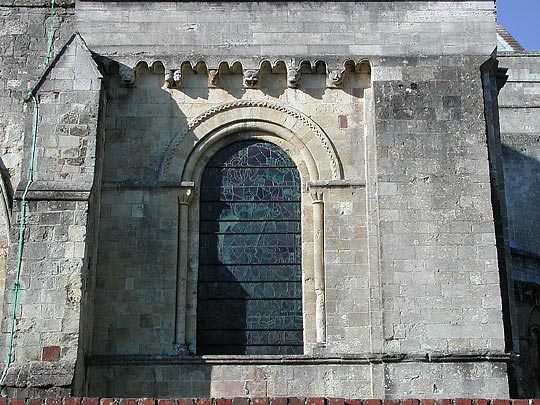

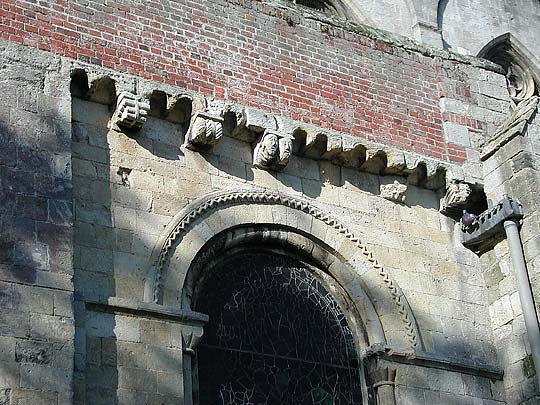

The E end is flat and clearly the result of two later alterations. Of the Norman building (i.e. of the 1100s) the chancel aisle E window remains, with shafts and simple two-scallop and similar capitals. The arches have a big roll, the hood-mould a thin flat zigzag. Corbel tables with heads. Between these two the width of the chancel was continued eastward. But of that externally only two blank arches tell. Inside the situation is clearer. How this Norman chapel, probably the Lady Chapel, ended, we don't know - probably straight.


Dscn0011-varyr-clncntr-u2-540-u0.5-q50.jpg (83098 bytes)                    Dscn9989-rot-clncntr-u2-540-u0.5-q60.jpg (78431 bytes)

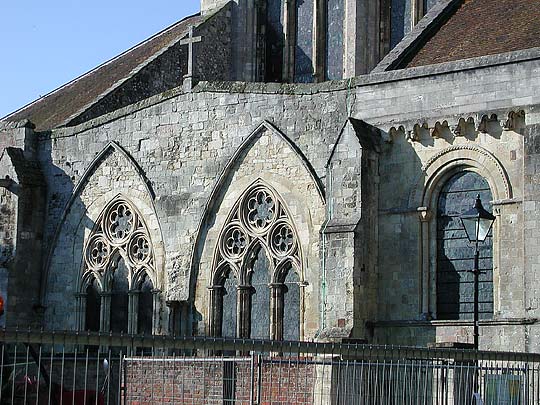

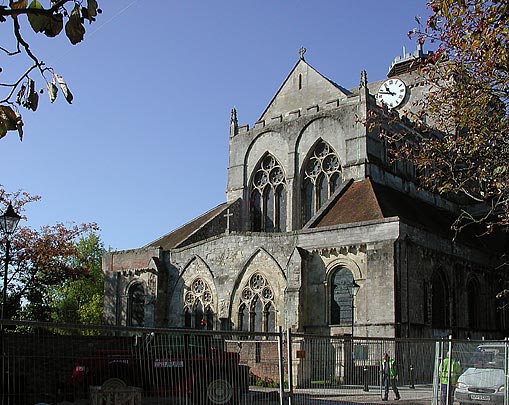

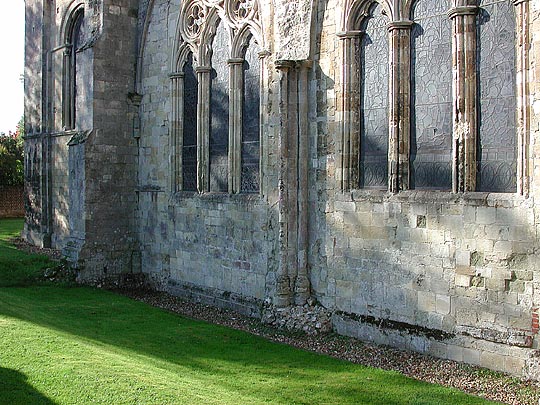

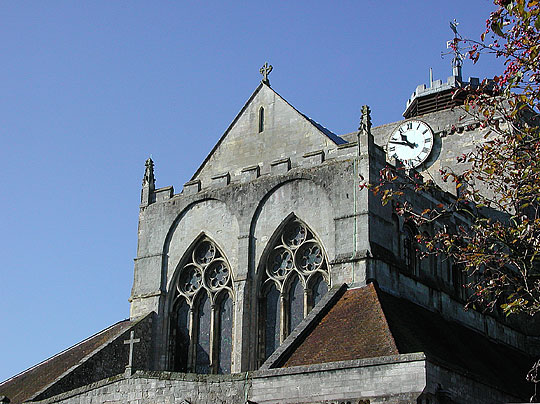

Later, i.e. about 1270-80, this chapel was replaced by a new one. The wall shafts in the corners and the middle remain, but this second chapel has also gone. Its E windows were apparently set back when the chapel was demolished. They are of three lights and three circles over, two quatrefoiled, the top one sexfoiled. At the same time the chancel itself received two very similar but much larger windows, also of three lights, but with two sexfoiled circles and one large quatrefoiled circle. Up there also large blocked Norman arches appear.



Dscn0028-transf-clncntr-u2-540-u0.5t3-q50.jpg (75560 bytes)          Dscn0020-clncntr-u2t3-540-u0.5t3-q40.jpg (56346 bytes)          Dscn9995-clncntr-u2t3-540-u0.5-q40.jpg (64241 bytes)          Dscn9998-clncntr-u2t3-540-u0.5-q50.jpg (73170 bytes)

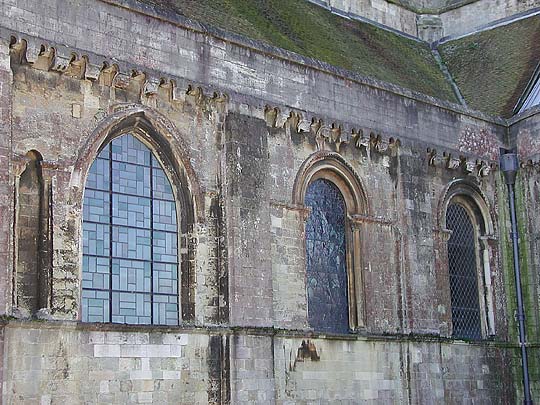

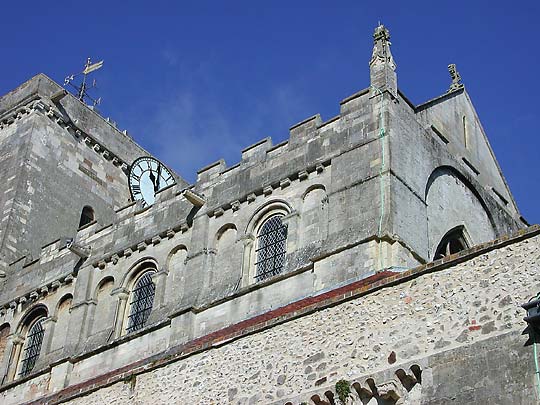

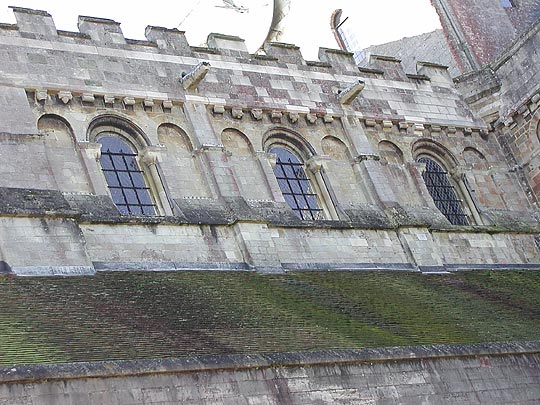

Round the corner, the S chancel aisle has an E bay with two narrow blank arches and then the first window, and then windows like the E window. Corbel-frieze also as on the E wall. The capitals are mostly of two scallops, but also of primitive leaves. The clerestory is arranged in threes, two blanks and one window. Only the window is shafted. All this is the same on the N side, except that the W aisle windows have finer arch mouldings.


Dscn0014-transf-clncntr-u2-405-u0.5-q60.jpg (49910 bytes) Dscn0016-clncntr-u2-540-u0.5t3-q40.jpg (66817 bytes) Dscn0025-transf-vardk-crop-clncntr-u2t3-405-u0.5-q60.jpg (58564 bytes)

Dscn9994-vary-u2t3-540-u0.5-q40.jpg (64140 bytes) Dscn0098-clncntr-vary-u2t3-540-u0.5-q40.jpg (69330 bytes) Dscn0096-clncntr-u2t3-540-u0.5-q40.jpg (73163 bytes)

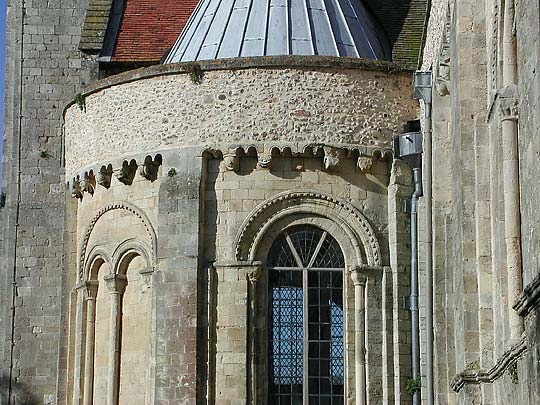

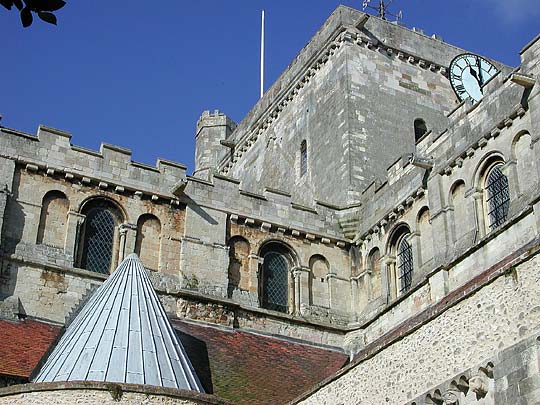

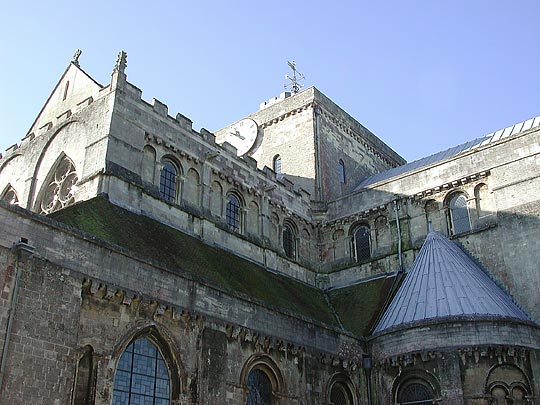

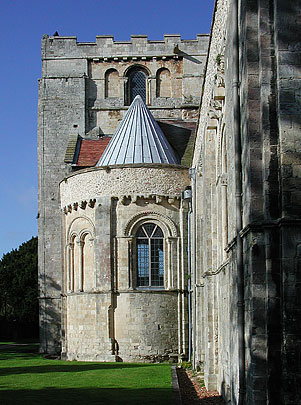

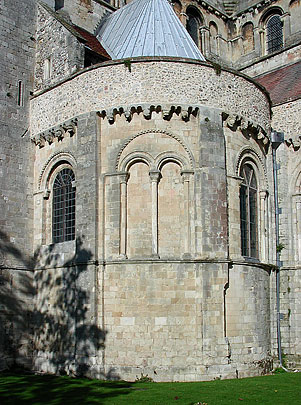

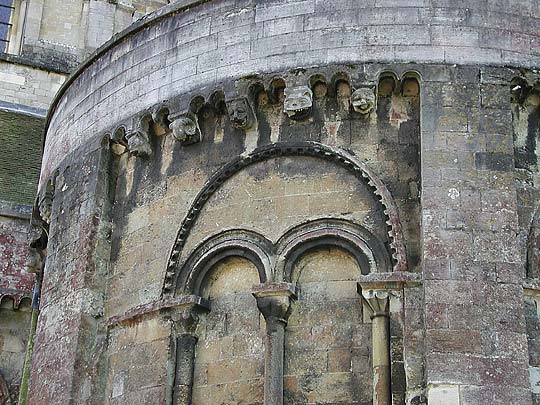

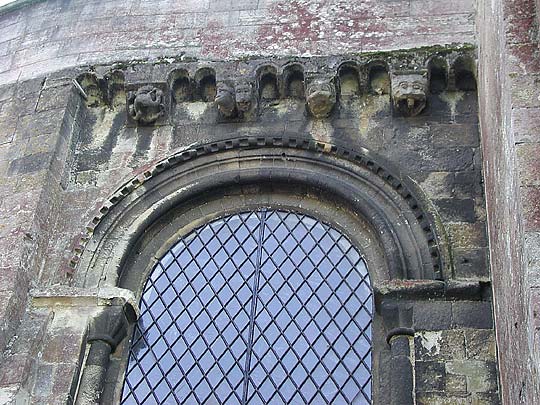

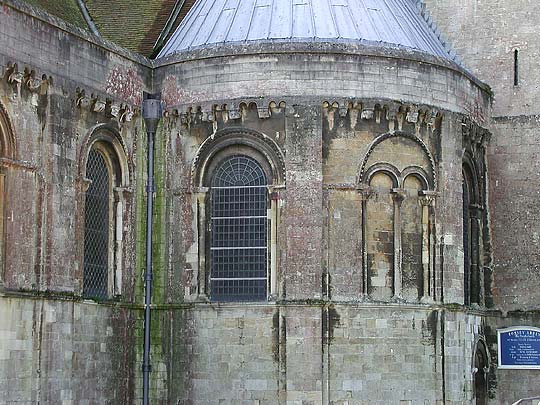

The transepts have an E chapel each which curves out apsidally, but instead of curving in again runs lamely against the chancel aisle. (South top row, north bottom row). The chapels have a blank twin in the middle and one window l., and one r. Billet hood-moulds.


Dscn0021-clncntr-u1-540-u0.5-q40.jpg (61999 bytes)          Dscn9996-varyr-clncntr-u2t3-540-u0.5-q50.jpg (57546 bytes)

Clerestory as before. ...
The crossing tower is very uneloquent. Just small windows ...



Dscn0030-transf-clncntr-u2t3-h560-u0.5-q50.jpg (78610 bytes)          Dscn0034-crop-u0.5-h405-u0.5t3-q60.jpg (61652 bytes)          Dscn0035-crop-u0.5-h405-u0.5t3-q60.jpg (63011 bytes)          Dscn0036-crop-u0.5-h405-u0.5t3-q50.jpg (61934 bytes)          Dscn0037-clncntr-u1-405-u0.5-q60.jpg (44773 bytes)

Dscn0077-transf-varlt-varyr-u2-h405-u0.5-q50.jpg (78241 bytes)          Dscn0093-clncntr-varyr-u1-540-u0.5t3-q40.jpg (68528 bytes)          Dscn0094-clncntr-vary-varr-u2t3-540-u0.5-q40.jpg (66859 bytes)          Dscn0095-cncntr-varyr-u2t3-540-u0.5-q50.jpg (74687 bytes)

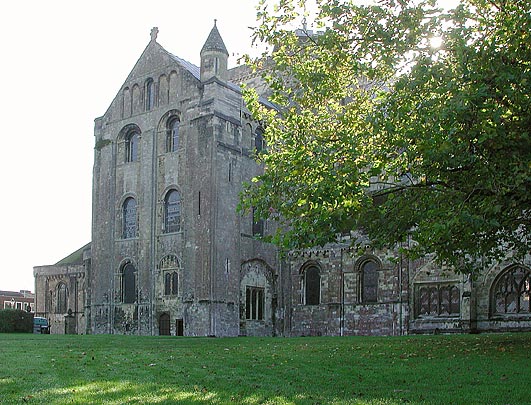

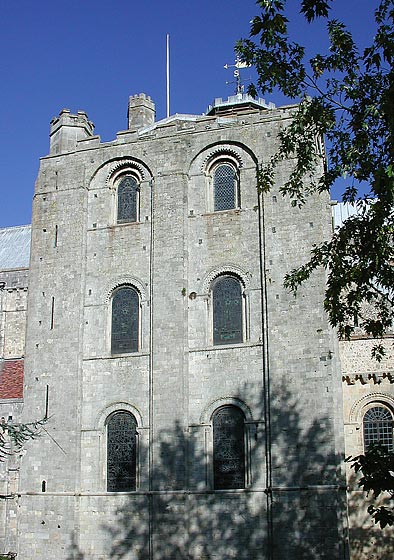

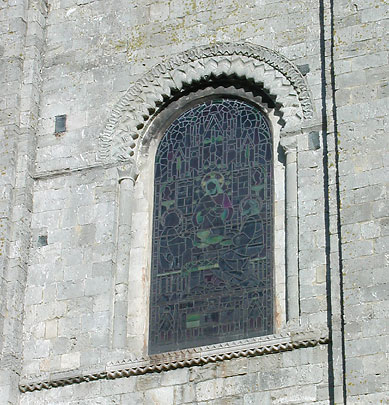

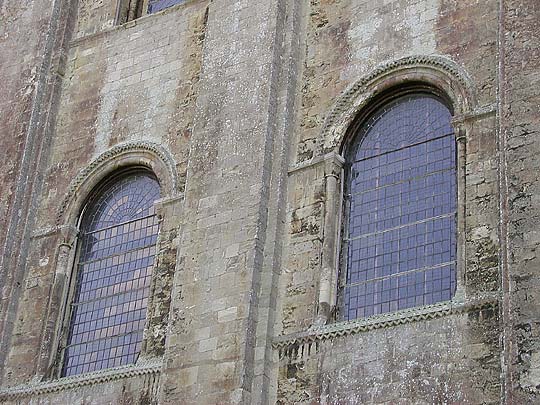

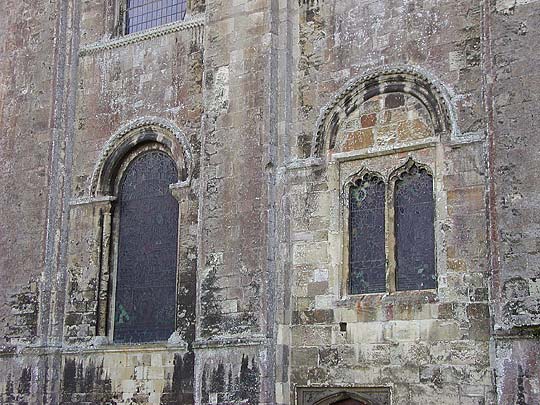

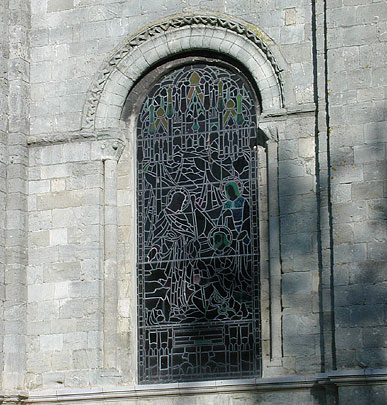

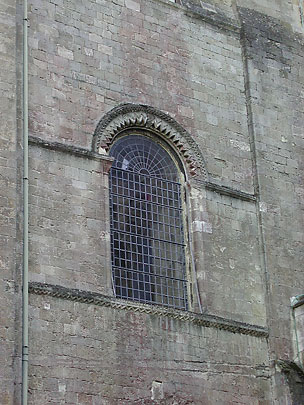

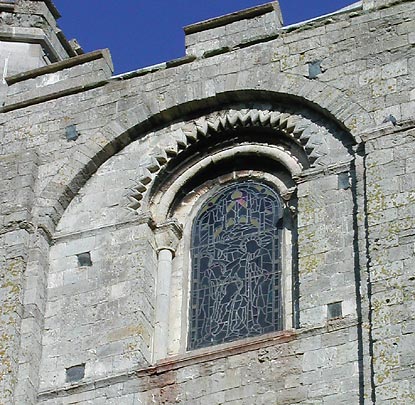

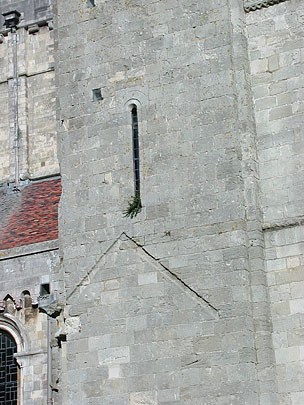

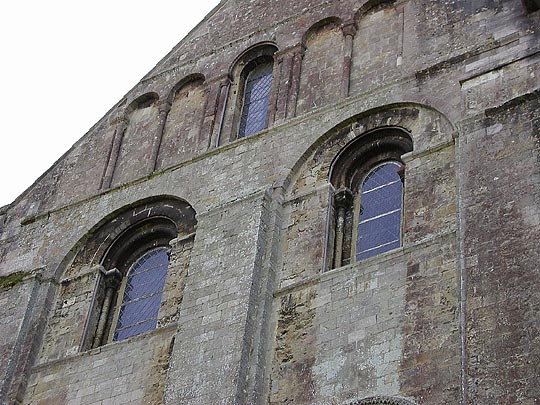

South transept above, north transept below, with close-ups of window stages in ascending order. The end walls of the transept are very perfect. Two widely spaced windows in three storeys, with a middle buttress. The only difference is that the N transept has in the gable a window with blank twin arches l. and r. Also on the ground stage a Perp window (15th century) was set in and a small Perp doorway with decorated spandrels. This is connected with the fact that the parishioners, who until then had been confined to the N aisle, were about 1403 granted  the use of the N transept. Which of the two transepts was built first, it is difficult to say. But as the S transept has big zigzag for the window arches on the first and second upper stages, and the N transept has not, one can deduce priority for the N transept. One very strange thing about the S side of the S transept is that no signs of the E range of the cloister buildings abutting on it exist at all. Can the slype have been so low and small and the dormitory have started only at the S of it? It is true that a small roof is outlined (upper row, last picture), but that is not enough for a normal cloister range.


Dscn0053-vary-u2-540-u0.5-q40.jpg (68835 bytes)          Dscn0050-vary-u2-405-u0.5-q60-clncntr-q60.jpg (53627 bytes)          Dscn0090-varyr-u1-405-u0.5-q60.jpg (54541 bytes)          Dscn0091-vary-u2t3-405-u0.5t3-q60.jpg (47893 bytes)          Dscn0092-clncntr-vary-u2t3-540-u0.5-q50.jpg (74804 bytes)

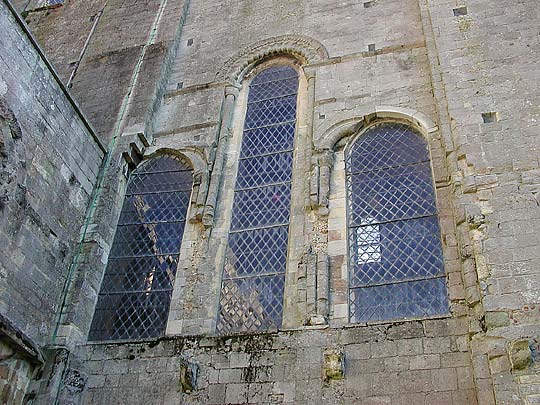

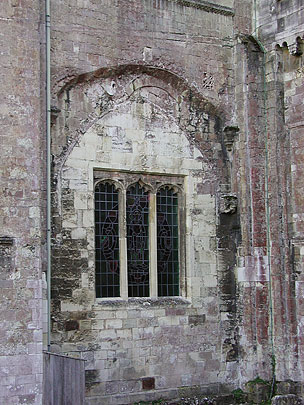

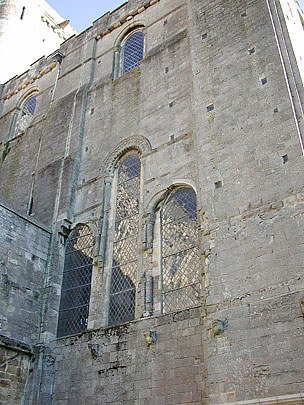

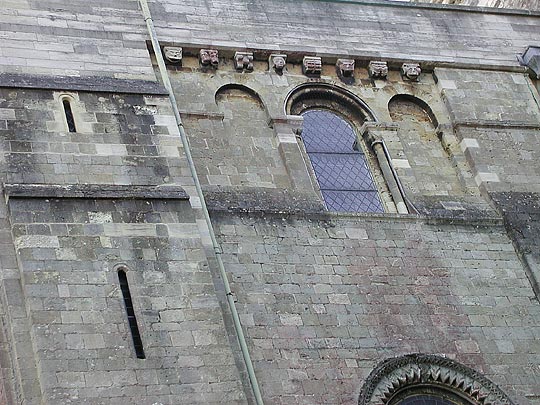

The W sides of the transepts differ more. They have a large tripartite composition on the ground stage, But on the S side, because of the cloister, it starts higher up (first two pictures). On the N side it is all altered Perp (third picture), though signs of the Norman work remain. The upper stages also differ, but not significantly. The first floor on the N side now has big zigzag too.

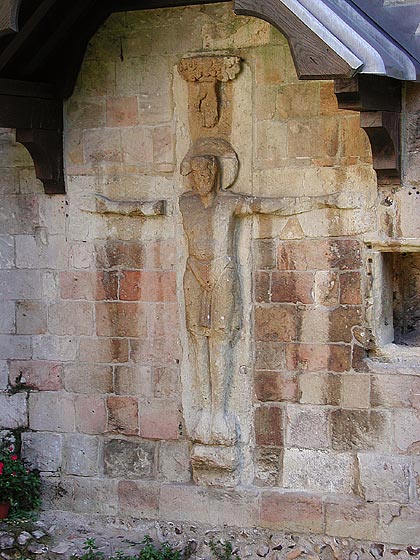

The famous Romsey Rood is outside the W wall of the S transept. The figure is about 6 ft 9 in. high, and the soft, a little undecided modelling is typically pre-Romanesque, or, in Continental terms, Ottonian. So the most likely date is the first half of the C11. Above Christ's head the hand of God shooting out of a cloud. Is this part somewhat re-cut?


Dscn0040-transf-u1-h405-u0.5-q50.jpg (69709 bytes)          Dscn0044-rot-vary-clncntr-u2-405-u0.5-q60.jpg (53923 bytes)          Dscn0051-varyr-crop-u2-h560-u0.5-q50.jpg (78296 bytes)          Dscn0046-u2t3-540-u0.5t2-clncntr-q50.jpg (64256 bytes)

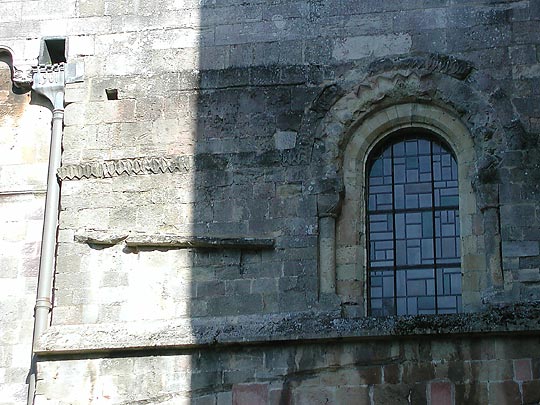

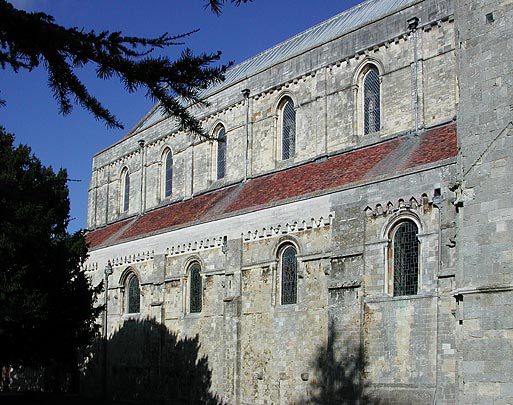

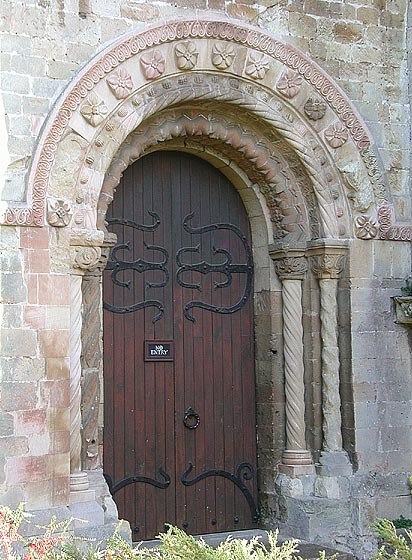

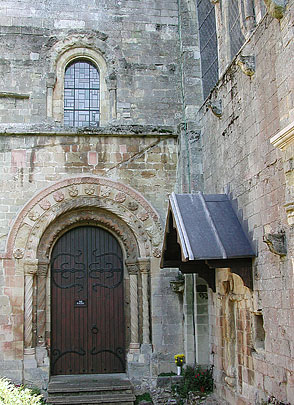

Now the nave. On the S side the aisle windows again have to take the cloister into consideration. The usual doorway in the E bay is much richer than anything so far. Two orders of shafts, capitals with trails, arch with zigzag, rope, a kind of raspberries, a paterae between arch and hood-mould. Small upper window. The following aisle windows are of the earliest type again, with roll mouldings. It was not unusual to build the choir parts and the S aisle wall at once, because of the cloister and the necessity of quickly providing some domestic accommodation.


Dscn0082-transf-clncntr-varyr-u2-h405-u0.5t3-q40.jpg (65333 bytes)          Dscn0089-clncntr-varyr-u2-540-u0.5t3-q40.jpg (70800 bytes)          Dscn0084-rot-cln cntr-varyr-u2-540-u0.5t3-q50.jpg (79313 bytes)          Dscn0071-trans-clncntr-varlt-varyr-u2-405-u0.5-q60.jpg (38209 bytes)          Dscn0086-clncntr-varyr-u2-540-u0.5t4-q50.jpg (77961 bytes)

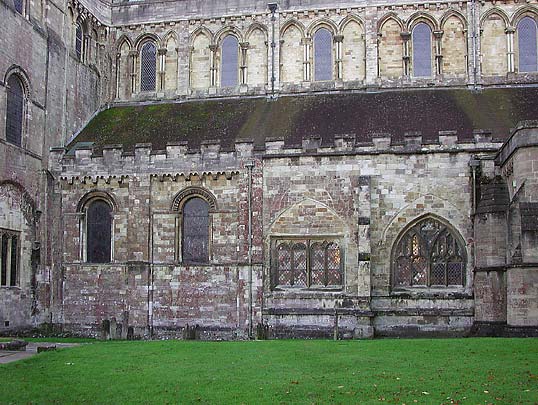

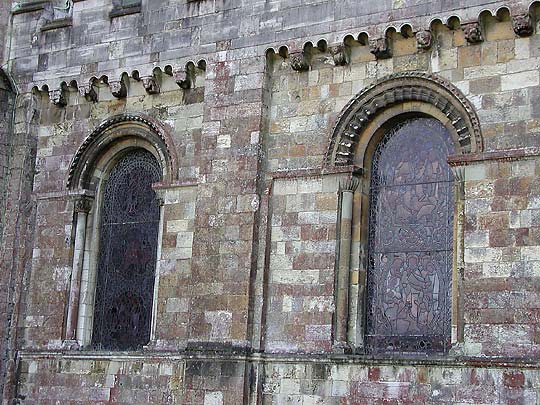

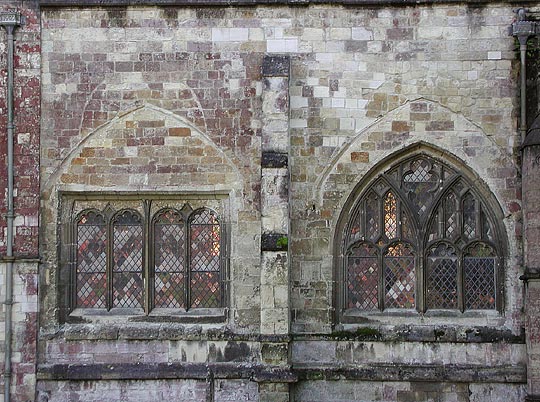

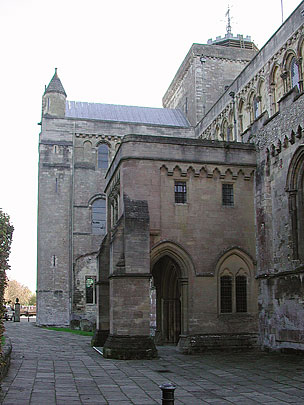

On the N side even bays one and two have zigzag at r. angles to the wall, i.e. a Late Norman motif. (Not quite true - bay one does not have the zigzag). After that the windows are Perp, again no doubt in connexion with the parochial purpose of the nave. The N porch dates from 1908 and is by W.D. Caröe.
Further information kindly provided 2005 by Mr Stephen Stokes, Verger at Romsey Abbey: The first two bays from the N transept may look Norman but are in fact Victorian and were put in by the late Revd Edward Lyon Berthon in the latter part of the 19th Century.

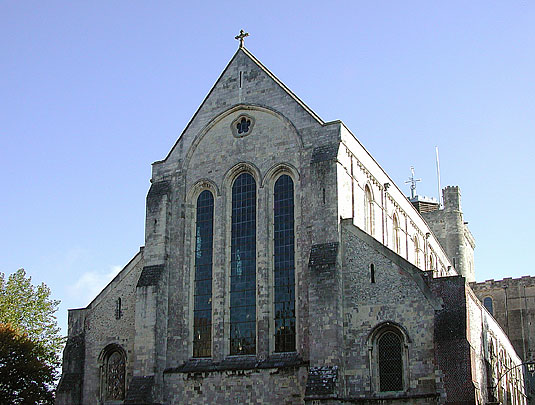

Caröe was also responsible for the beautifully simple three-lancet composition of the W wall.*
* Mr. Hubbuck doubts this. He suggests that the W window might be genuine and the rest by Ferrey.


Dscn0042-transf-clncntr-u2t3-540-u0.5t2-q30.jpg (58338 bytes)          Dscn0048-u1-540-u0.5-q50.jpg (66977 bytes)          Dscn0042-crop1-u1t4-q50.jpg (63774 bytes)          Dscn0042-crop2-u1t4-q50.jpg (58563 bytes)

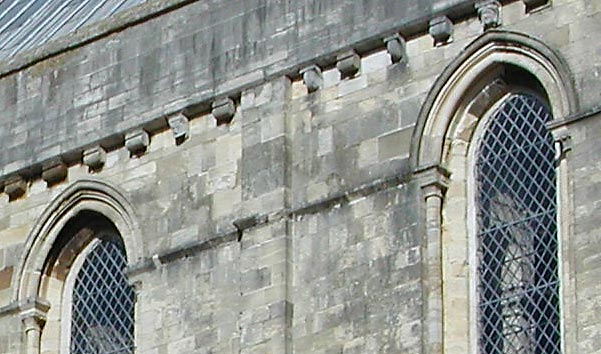

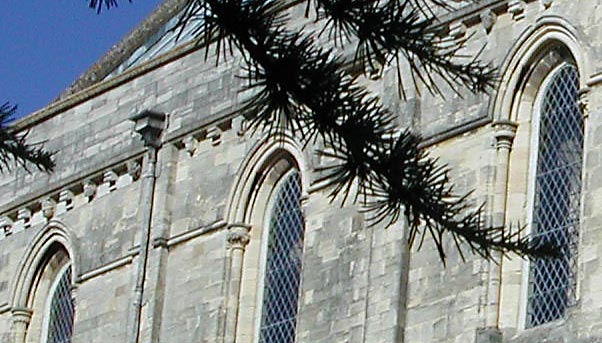

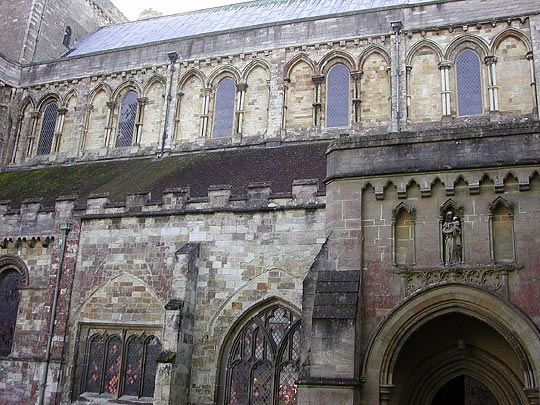

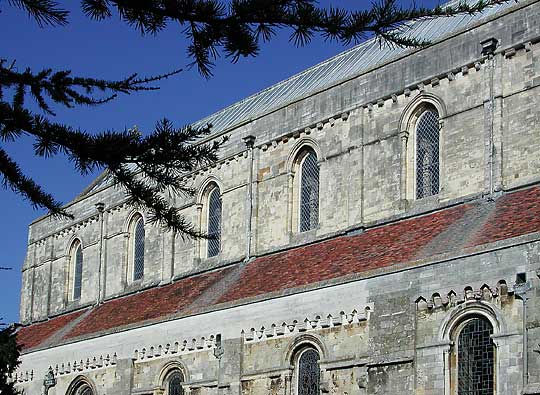

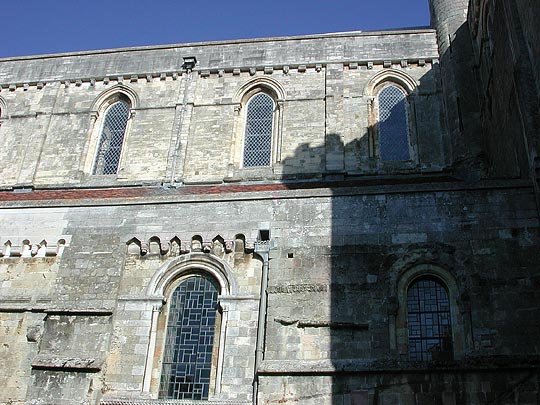

The nave clerestory deserves special attention. It is no longer Norman from the very beginning (not quite - see inside). On the S side it has one shafted lancet per bay. The capitals in the E bays however are still of Norman types, and only in the W bays stiff-leaf comes in. There are also different string courses.


Dscn0088-clncntr-varyr-u1-540-u0.5-q50.jpg (76998 bytes)          Dscn0087-varyr-clncntr-u1-540-u0.5-q50.jpg (76001 bytes)

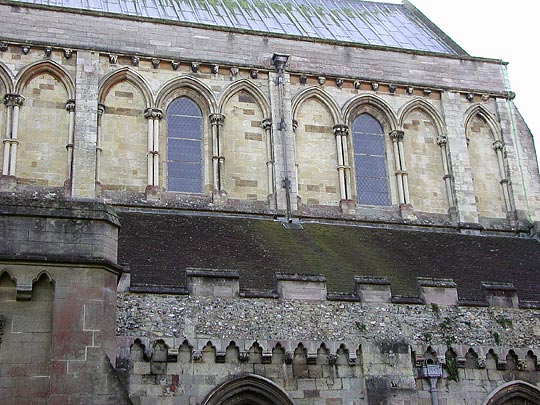

On the N side work obviously started later (see the observation on the aisle windows). Here the whole clerestory has shafted tripartite arcading, with double shafts flanking the actual window. However, for whatever reason, the corbel frieze remains Norman in type.


Dscn0055-transf-soft-varyr-clncntr-u2-405-u0.5-q60.jpg (57156 bytes)          Dscn0059-varyr-u2t3-405-u0.5-q60.jpg (50586 bytes)          Dscn0057-varyr-crop-u2-405-u0.5-q60.jpg (52543 bytes)          Dscn0062-transf-u2-405-u0.5-q60.jpg (52659 bytes)

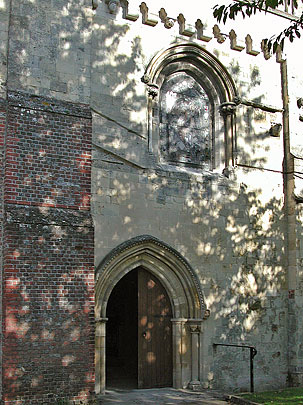

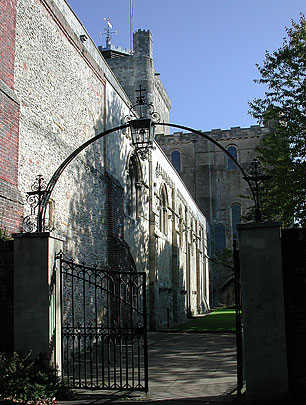

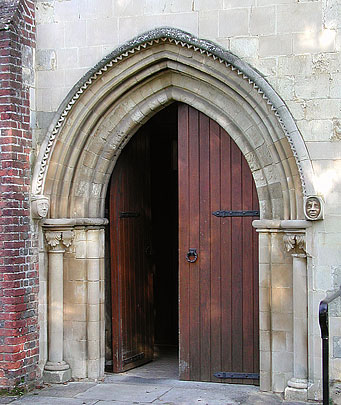

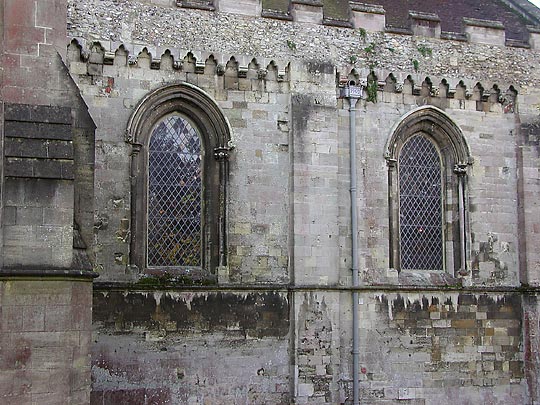

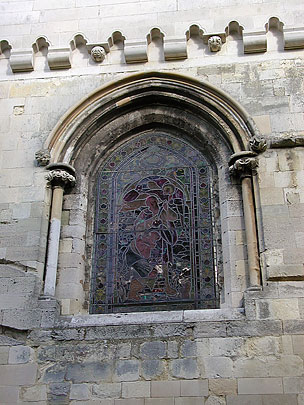

In the W bays, to return to them, even the aisle windows are now pointed and have stiff-leaf shafts. The corbel-table above them here changes to a pointed-trefoiled shape. Finally the doorway from the W bay into the cloister. This again has stiff-leaf capitals, and an arch of many mouldings including a keeled roll and a roll with a fillet. Hood-mould with dogtooth.

So one can see that the S aisle was proceeded with first and that the clerestory also was reached earlier on the S than the N side. One can also see that the W bays are the result not of evolution but of a total change of style. The interior will show all this more fully.
